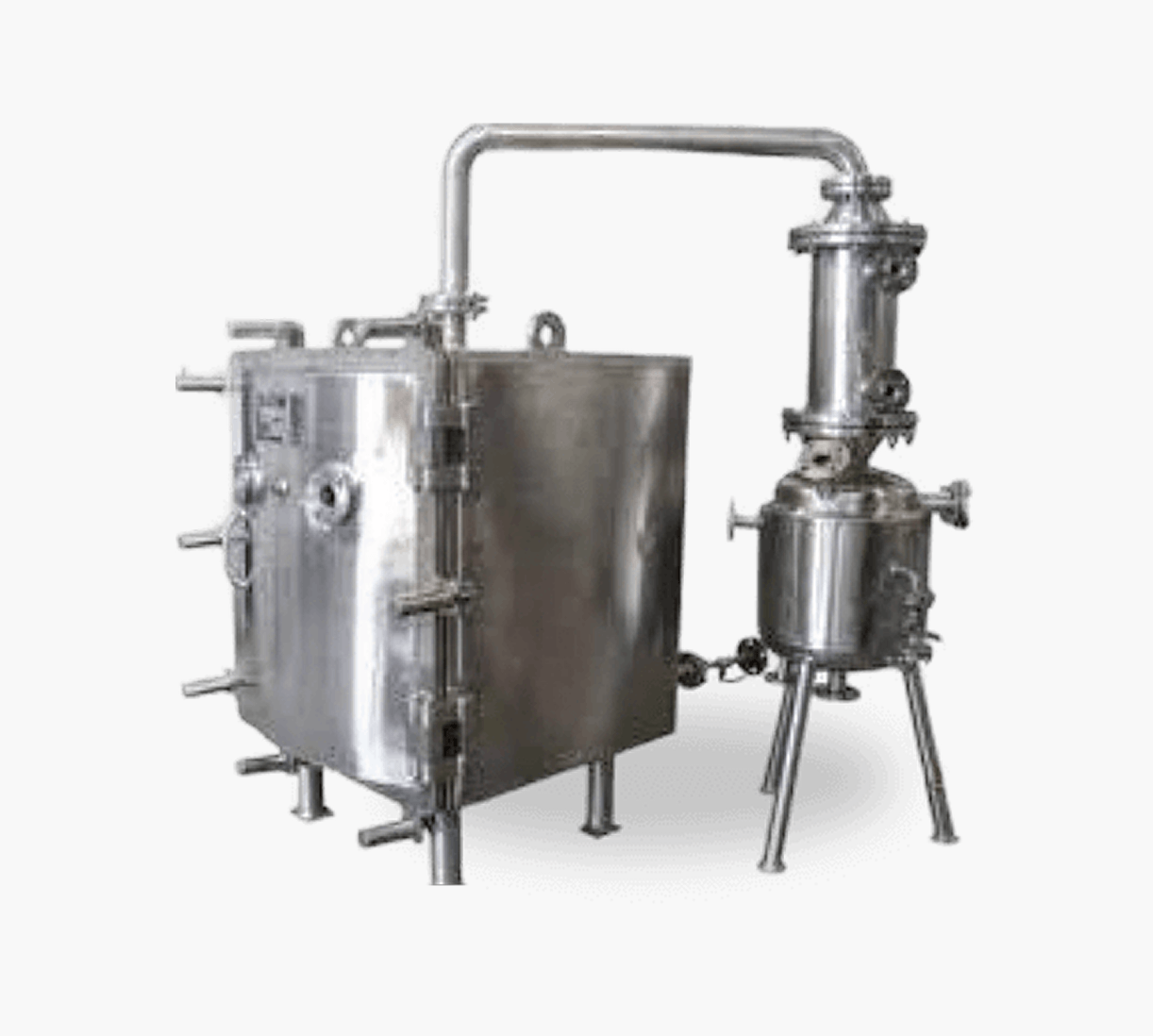

Vacuum Tray Dryer
The Vacuum Tray Dryer is a high-performance drying system designed for efficient moisture removal from heat-sensitive and hygroscopic materials under controlled vacuum conditions. It ensures uniform drying at low temperatures, preserving product quality, minimizing material loss, and delivering reliable, hygienic, and energy-efficient performance across pharmaceutical and industrial applications.

Features

  • Uniform Vacuum Drying
  • Low Temperature Operation
  • GMP Compliant Design
  • Minimal Product Loss
  • Easy Cleaning System
  • PLC Automation Ready
  • Stainless Steel Construction
  • Reliable Drying Performance
Technical Specification
Model Shelves No. Tray No. Tray on Each Shelf Water Heating System Oil Heating System Vacuum Pump
Heater KW Circ. Pump Heater KW Circ. Pump
SPE-VTD-6 6+1 DUMMY 6 1 3 0.5 6 0.5 2/3
SPE-VTD-12 6+1 DUMMY 12 2 6 0.75 9 1 3
SPE-VTD-24 12+1 DUMMY 24 2 12 0.75 18 2 5
SPE-VTD-36 12+1 DUMMY 36 3 15 1 24 2 5/7.5
SPE-VTD-48 16+1 DUMMY 48 3 18 1 36 3 7.5
SPE-VTD-96 16+1 DUMMY 96 6 30 1/2 48 3 2/3
SPE-VTD-6
Shelves No.6+1 DUMMY
Tray No.6
Tray on Each Shelf1
Water Heating System
Heater KW3
Circ. Pump0.5
Oil Heating System
Heater KW6
Circ. Pump0.5
Vacuum Pump
Vacuum Pump2/3
SPE-VTD-12
Shelves No.6+1 DUMMY
Tray No.12
Tray on Each Shelf2
Water Heating System
Heater KW6
Circ. Pump0.75
Oil Heating System
Heater KW9
Circ. Pump1
Vacuum Pump
Vacuum Pump3
SPE-VTD-24
Shelves No.12+1 DUMMY
Tray No.24
Tray on Each Shelf2
Water Heating System
Heater KW12
Circ. Pump0.75
Oil Heating System
Heater KW18
Circ. Pump2
Vacuum Pump
Vacuum Pump5
SPE-VTD-36
Shelves No.12+1 DUMMY
Tray No.36
Tray on Each Shelf3
Water Heating System
Heater KW15
Circ. Pump1
Oil Heating System
Heater KW24
Circ. Pump2
Vacuum Pump
Vacuum Pump5/7.5
SPE-VTD-48
Shelves No.16+1 DUMMY
Tray No.48
Tray on Each Shelf3
Water Heating System
Heater KW18
Circ. Pump1
Oil Heating System
Heater KW36
Circ. Pump3
Vacuum Pump
Vacuum Pump7.5
SPE-VTD-96
Shelves No.16+1 DUMMY
Tray No.96
Tray on Each Shelf6
Water Heating System
Heater KW30
Circ. Pump1/2
Oil Heating System
Heater KW48
Circ. Pump3
Vacuum Pump
Vacuum Pump2/3
Key Components

Drying Chamber:

Heavy-duty SS304/SS316 chamber with shelves for trays.

Heated Shelves:

Circulate hot water, steam, or thermal fluid.

Trays:

SS316 trays for holding material to be dried.

Vacuum Pump:

Creates and maintains the vacuum environment.

Condenser:

Condenses and collects vaporized moisture.

Control Panel:

Includes temperature, timer, and vacuum controls.

Gasketed Door with Locks:

Ensures airtight sealing during operation.
Applications
The Vacuum Tray Dryer is widely used in pharmaceutical, chemical, food, cosmetic, and nutraceutical industries for drying heat-sensitive, hygroscopic, and thermolabile materials. Its vacuum-based drying process preserves product quality while ensuring efficient moisture removal and consistent batch performance.

Designed for critical drying applications, the Vacuum Tray Dryer operates at reduced temperatures to prevent thermal degradation. It improves production efficiency, minimizes product loss, supports hygienic processing, and delivers reliable results while complying with stringent GMP and industrial quality standards.
Applications Include
  • Dries pharmaceutical APIs preserving potency and stability under controlled vacuum conditions efficiently.
  • Processes heat-sensitive chemical compounds without affecting product quality or composition consistently.
  • Removes moisture from herbal extracts while maintaining natural active ingredient properties.
  • Dries fruits, vitamins, and nutraceutical powders with superior product retention efficiently.
  • Supports cosmetic ingredient drying ensuring purity and consistent product performance every batch.
  • Reduces drying temperatures preventing thermal degradation of sensitive industrial materials effectively.
  • Enhances manufacturing efficiency through uniform, contamination-free, and controlled vacuum drying processes.
