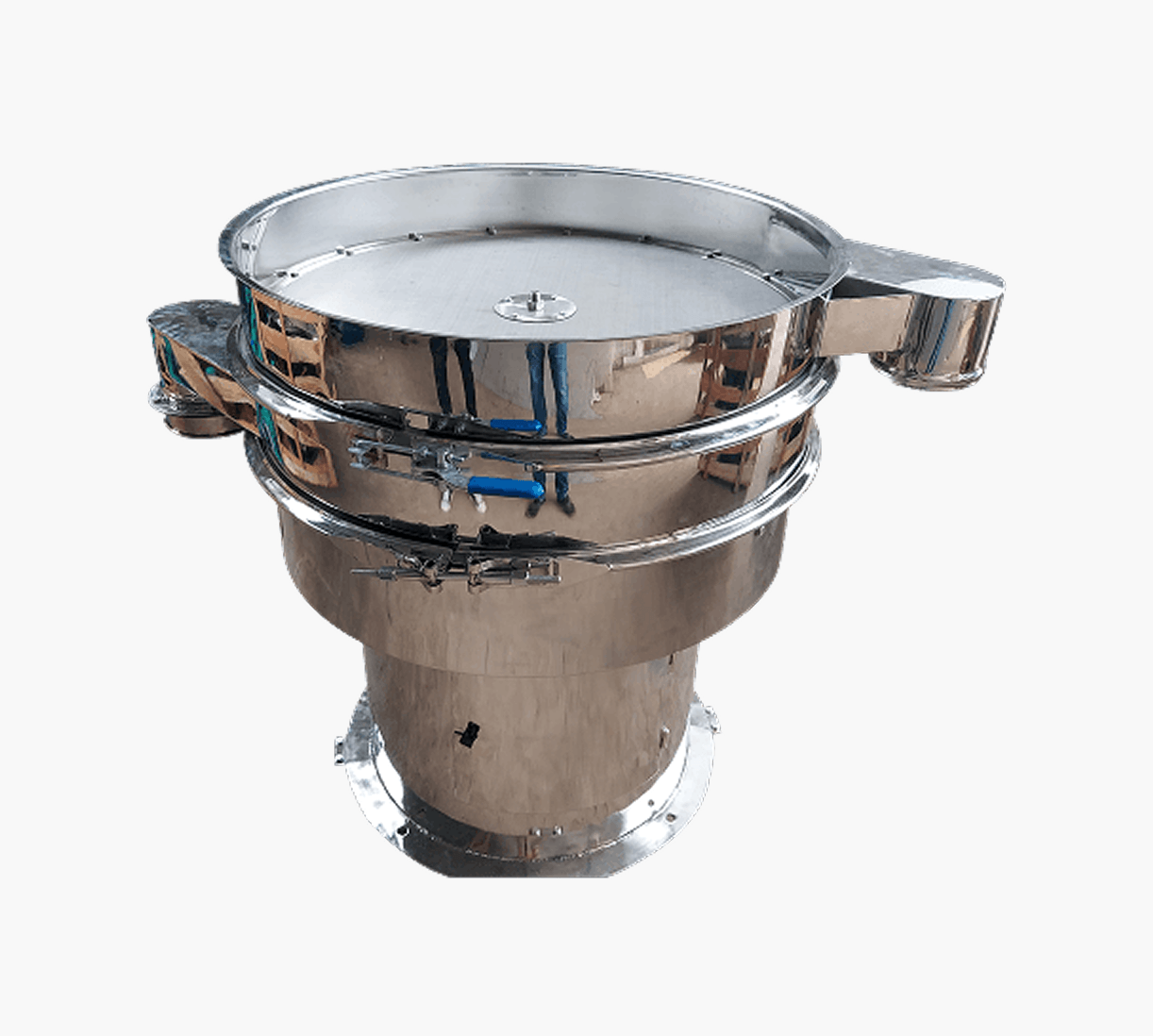

Vibro Shifter
The Vibro Shifter is a precision screening machine designed for efficient grading, sieving, de-dusting, and separation of powders, granules, and liquids. Its high-frequency vibratory motion ensures accurate particle classification, improved product quality, hygienic processing, low maintenance, and reliable performance across pharmaceutical, food, chemical, and cosmetic industries.
Features
- Multi Deck Screening
- Quick Screen Replacement
- High Separation Accuracy
- Low Noise Operation
- Stainless Steel Construction
- Easy Maintenance Design
- GMP Compliant Manufacturing
- Reliable Vibratory Performance
| Model | Screens | Screen Dia | Capacity/Hour | Charging Height | Discharging Height | Electric Motor |
|---|---|---|---|---|---|---|
| SPE - VS - 20" | S.S 316 / 304 | 500 mm | 20–70 KGs/Hr. | 900 mm | 420 mm | 0.5 HP |
| SPE - VS - 24" | S.S 316 / 304 | 610 mm | 20–140 KGs/Hr. | 900 mm | 420 mm | 0.5 HP |
| SPE - VS - 30" | S.S 316 / 304 | 750 mm | 30–250 KGs/Hr. | 950 mm | 420 mm | 0.5 HP |
| SPE - VS - 36" | S.S 316 / 304 | 910 mm | 150–300 KGs/Hr. | 1000 mm | 500 mm | 1 HP |
| SPE - VS - 48" | S.S 316 / 304 | 1220 mm | 200–500 KGs/Hr. | 1050 mm | 500 mm | 2 HP |
| SPE - VS - 60" | S.S 316 / 304 | 1520 mm | 300–800 KGs/Hr. | 1200 mm | 500 mm | 2 HP |
| SPE - VS - 72" | S.S 316 / 304 | 1828 mm | 300 KGs – 1 T/Hr. | 1200 mm | 500 mm | 3 HP |
SPE - VS - 20"
Screens
S.S 316 / 304
Screen Dia
500 mm
Capacity/Hour
20–70 KGs/Hr.
Charging Height
900 mm
Discharging Height
420 mm
Electric Motor
0.5 HP
SPE - VS - 24"
Screens
S.S 316 / 304
Screen Dia
610 mm
Capacity/Hour
20–140 KGs/Hr.
Charging Height
900 mm
Discharging Height
420 mm
Electric Motor
0.5 HP
SPE - VS - 30"
Screens
S.S 316 / 304
Screen Dia
750 mm
Capacity/Hour
30–250 KGs/Hr.
Charging Height
950 mm
Discharging Height
420 mm
Electric Motor
0.5 HP
SPE - VS - 36"
Screens
S.S 316 / 304
Screen Dia
910 mm
Capacity/Hour
150–300 KGs/Hr.
Charging Height
1000 mm
Discharging Height
500 mm
Electric Motor
1 HP
SPE - VS - 48"
Screens
S.S 316 / 304
Screen Dia
1220 mm
Capacity/Hour
200–500 KGs/Hr.
Charging Height
1050 mm
Discharging Height
500 mm
Electric Motor
2 HP
SPE - VS - 60"
Screens
S.S 316 / 304
Screen Dia
1520 mm
Capacity/Hour
300–800 KGs/Hr.
Charging Height
1200 mm
Discharging Height
500 mm
Electric Motor
2 HP
SPE - VS - 72"
Screens
S.S 316 / 304
Screen Dia
1828 mm
Capacity/Hour
300 KGs – 1 T/Hr.
Charging Height
1200 mm
Discharging Height
500 mm
Electric Motor
3 HP
Vibratory Motor:
Provides the vibration needed for the sifting process.
Sieve/Screen Decks:
One or more mesh screens to classify material based on size.
Screen Frame:
Holds the sieve in place; often equipped with gaskets for sealing.
Clamping Rings:
Secure the frames and ensure tight assembly.
Base Frame:
Provides structural support and houses the motor.
Outlet Ports:
For coarse and fine material discharge.
Dust Cover (optional):
Prevents contamination and maintains cleanliness.
The Vibro Shifter is extensively used in pharmaceutical, food, chemical, cosmetic, and nutraceutical industries for accurate screening, grading, and separation of powders, granules, and liquids. Its advanced vibratory technology ensures uniform particle distribution, improved product quality, and contamination-free processing.
Designed for continuous industrial operation, the Vibro Shifter efficiently removes oversized particles, de-dusts materials, and classifies products with high precision. It enhances production efficiency, minimizes material wastage, and delivers reliable performance while meeting strict hygiene and quality standards.
Applications Include
- Separates pharmaceutical powders with accurate particle sizing before tablet manufacturing processes.
- Classifies granules ensuring consistent quality for capsule filling and formulation applications.
- Screens flour, spices, sugar, and food ingredients with exceptional accuracy consistently.
- Removes oversized particles from chemical powders for improved processing efficiency and quality.
- Filters cosmetic powders ensuring smooth texture and uniform product consistency every batch.
- Supports nutraceutical powder grading with hygienic and contamination-free screening operations efficiently.
- Enhances manufacturing productivity through precise vibratory screening and material classification processes.
